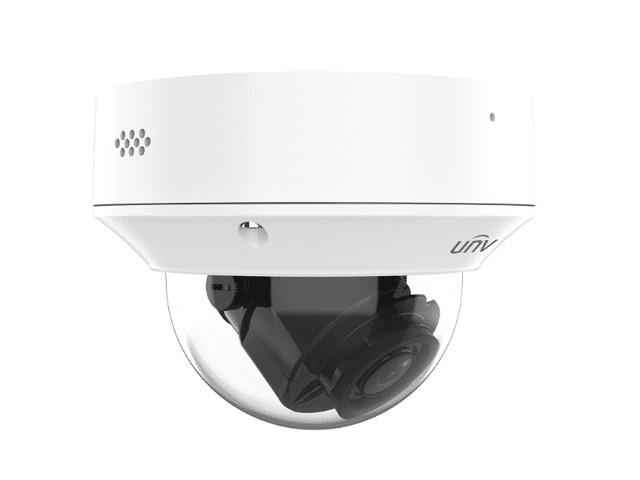

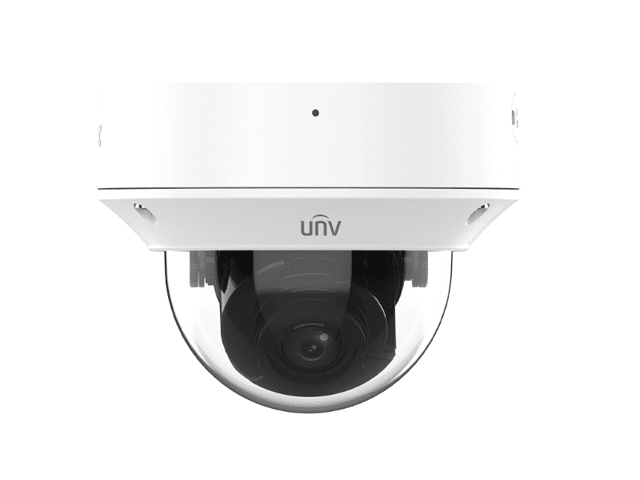

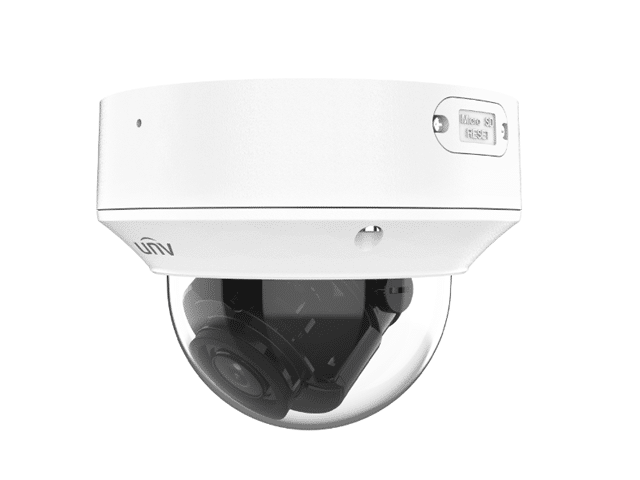

UNV IPC3235SB-ADZK-10, IP67 5MP IR 2.7-13.5mm Motorised Dome Camera
UNV IPC3235SB-ADZK-10, IP67 5MP IR 2.7-13.5mm Motorised Dome Camera
Part Number:
UNI580B
Need help? Contact Us Now!
Trade pricing available via login.
View full details
UNV IPC3235SB-ADZK-10, IP67 5MP IR 2.7-13.5mm Motorised Dome Camera
UNV IP67 5MP IR 2.7-13.5MM MOTORISED DOME CAMERA NEW
- High quality image with 5MP, 1/2.7"CMOS sensor
5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps - Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant and IP67 protection
Overview
OPTICS
- Day/night functionality
- Smart IR, up to 40m (131ft) IR distance Up to 120 dB WDR
- (Wide Dynamic Range) 2D/3D DNR (Digital Noise Reduction)
SMART (UNV IPC3235SB-ADZK-10))
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
COMPRESSION
- Ultra 265, H.264,
- MJPEG ROI (Region of Interest)
- Customized OSD
NETWORK
- ONVIF Conformance
STRUCTURE
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide input voltage range of±25%
- IK10 vandal resistant
- 3-Axis
- IP67 ingress protection
| ‚ | UN-IPC3235SBADZKI0 | |||||||
| Camera | ||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | |||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 2.7mm | 60.8 | 24.3 | 12.2 | 6.1 | ||||
| 13.5mm | 303.8 | 121.5 | 60.8 | 30.4 | ||||
| Angle of view(H) | 106.25°~ 30.4286.5° | |||||||
| Angle of View (V) | 56.36°~ 17.22 | |||||||
| Angle of View (O) | 110.34°~34.18° | |||||||
| Adjustment angle | Pan: 0°~355° | Tilt: 0°~80° | Rotate: 0°~355° | |||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||
| Minimum Illumination | Colour: 0.002Lux (F1.35, AGC ON) 0 Lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >56 dB | |||||||
| IR Range | Up to 40m (131 ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
| Frame Rate |
Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream:: D1 (720*576), Max 30fps; Third Stream:: CIF (352*288), Max 30fps |
|||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Video stream | Triple streams | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| Dewarping | Supported | |||||||
| Smart | ||||||||
| Behavior Detection | Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection | |||||||
| Audio | ||||||||
| Audio Compression | G.711 | |||||||
| Two-way audio | Supported | |||||||
| Suppression | Supported | |||||||
| Sampling Rate | 8 KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||
| Network Storage | ANR | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Client | EZStation ,EZLive, Ezview | |||||||
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|||||||
| Interface | ||||||||
| Audio I/O |
Input: impedance 35k©; amplitude 2V [p-p] Output: impedance 600©; amplitude 2V [p-p] |
|||||||
| Alarm I/O | 1/1 | |||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
| Built-in Mic | Supported | |||||||
| Certification | ||||||||
| Certifications |
CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15 |
|||||||
| General | ||||||||
| Power |
12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 5.5W |
|||||||
| Dimensions (ƒ˜ x H) | ¦148 x 111mm (ƒ˜5.8¢€ x 4.4¢€) | |||||||
| Weight | 0.45kg (0.99lb) | |||||||
| Material | Metal + Plastic | |||||||
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ¢‰¤95% RH (non-condensing) | |||||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ¢‰¤95% RH (non-condensing) | |||||||
| Surge protection | 2KV | |||||||
| Reset Button | Supported | |||||||
| Ingress Protection | IP67 | |||||||
| Vandal Resistant | IK10 | |||||||
