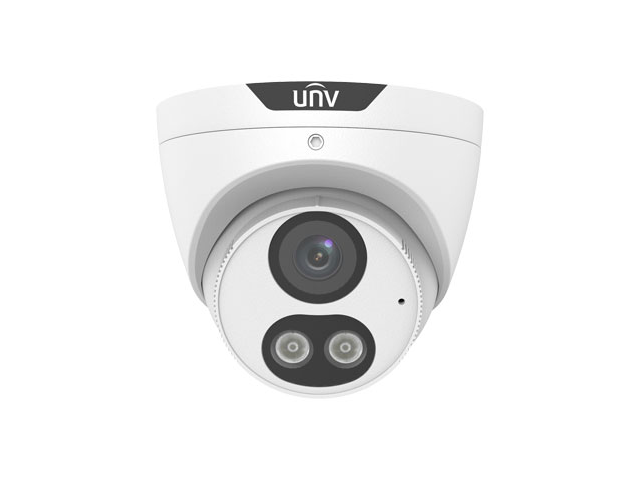

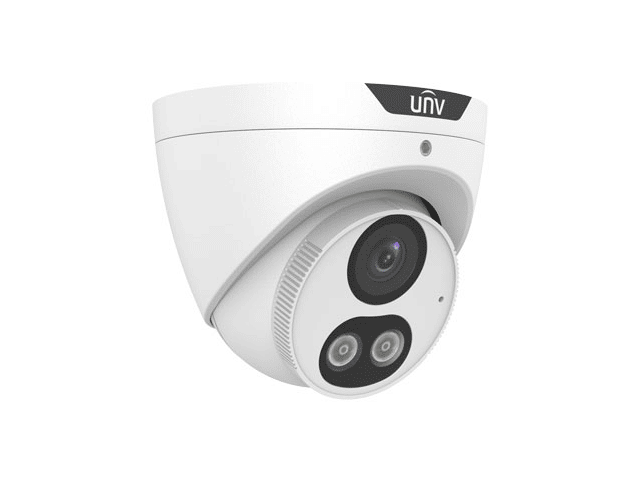

UNV IPC3615SE-ADF28KM-WL-10, 5MP HD ColorHunter Fixed Eyeball Network Camera

UNV IPC3615SE-ADF28KM-WL-10, 5MP HD ColorHunter Fixed Eyeball Network Camera

Part Number:
UNI506D
SKU:  UNI506D
Categories:  CCTV Surveillance, Group-0, IP Cameras, Uniview
Brand:  UNIVIEW
Need help? Contact Us Now!
+61 3 9596 6688 sales@mainline.com.au
Trade pricing available via login.

Need a product not listed online? Contact our team and we’ll source it for you.

View full details

UNV IPC3615SE-ADF28KM-WL-10, 5MP HD ColorHunter Fixed Eyeball Network Camera

IPC3615SE-ADF28(40)KM-WL-I0

5MP HD ColorHunter Fixed Eyeball Network Camera

Features:

  • High quality image with 5MP, 1/2.7"CMOS sensor
  • 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps;3MP (2304*1296)@30/25fps; 2MP (1920*1080)@ 30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Colorhunter technology ensures 24-hour full-colour images
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 corridor Mode
  • Support built-in Mic
  • Support 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply

Specifications (UNV IPC3615SE-ADF28KM-WL-10):

Camera
Sensor 1/2.7″, 5.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.001Lux (F1.0, AGC ON)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 80° Rotate: 3° ~ 360°
WDR 120dB
S/N >56dB
Lens
Lens 2.8mm@F1.0 4.0mm@F1.0
Angle of view(H) 102.0° 80.2°
Angle of View (V) 53.4° 43.0°
Angle of View (O) 121.0° 94.7°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
4.0 90.0 36.0 18.0 9.0
Illuminator
LED Distance Up to 30m (98ft)
LEDs Number 2
LED On/Off Control Auto/Manual
Video
Video Compression Ultra265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps;3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; 720P(1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
