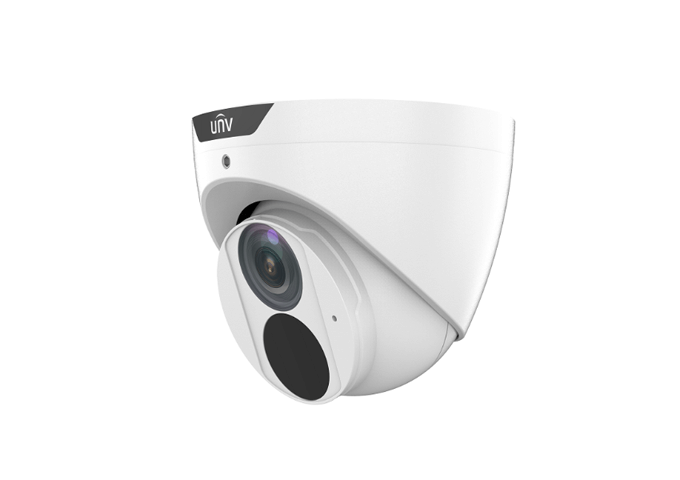

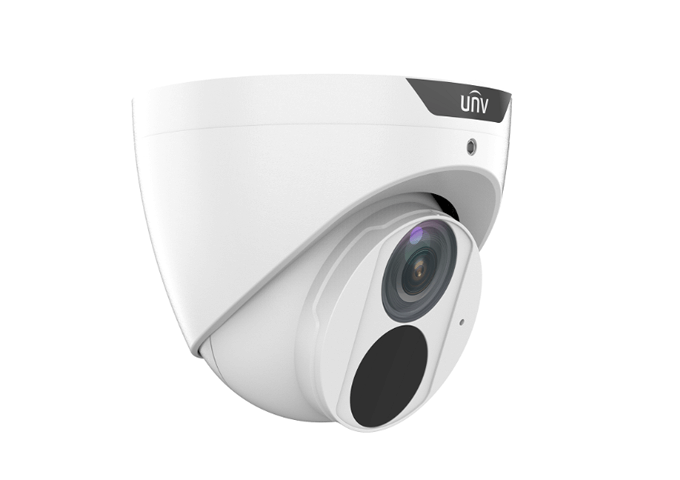

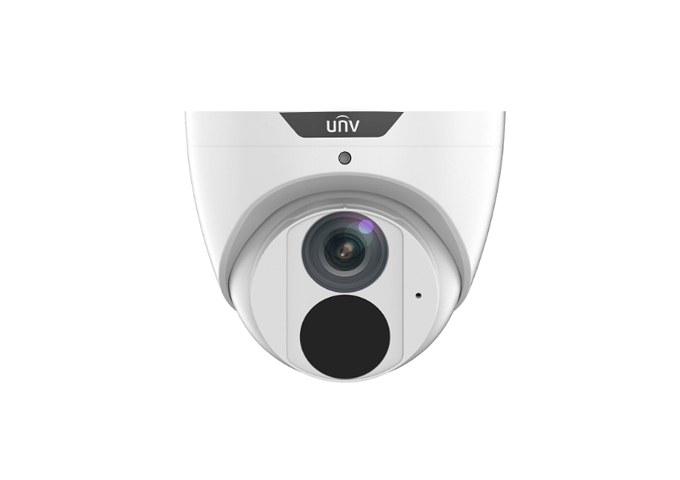

UNV IPC3618SSADF28KB, UNV 8MP IP67 IR 2.8mm Turret Camera Black

UNV IPC3618SSADF28KB, UNV 8MP IP67 IR 2.8mm Turret Camera Black

Part Number:
UNI887B
SKU:  UNI887B
Categories:  CCTV Surveillance, IP Cameras, Uniview
Brand:  UNIVIEW
Need help? Contact Us Now!
+61 3 9596 6688 sales@mainline.com.au
Trade pricing available via login.
View full details

UNV IPC3618SSADF28KB, UNV 8MP IP67 IR 2.8mm Turret Camera Black

Features (UNV IPC3618SSADF28KB):

OPTICS

  • 1/2.8’’, Powered by lighthunter
  • Smart IR, up to 50m (164 ft) IR distance
  • Up to 120 dB Optical WDR (Wide Dynamic Range)

SMART

  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

COMPRESSION

  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • 3840*2160@20fps in the main stream
  • ROI (Region of Interest)

NETWORK

  • ONVIF Conformance

STRUCTURE

  • Built-in Mic
  • DC12V or PoE power supply
  • Wide voltage range of±25% in DC
  • Micro SD, up to 256 GB
  • IP67 ingress protection

Specifications (UNV IPC3618SSADF28KB):

IPC3618SS-ADF28KM-I0 IPC3618SS-ADF40KM-I0
Camera
Sensor 1/2.8", 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
Iris Fixed
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 86.9(285.1ft) 34.8(114.0ft) 17.4(57.0ft) 8.7(28.5ft)
4mm 124.1(407.3ft) 49.7(162.9ft) 24.8(81.5ft) 12.4(40.7ft)
Angle of view(H) 96.6° 86.5°
Angle of View (V) 50.8° 48.2°
Angle of View (O) 125.6° 106.4°
Adjustment angle Pan: 0°~360° Tilt: 0°~75° Rotate: 0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56 dB
IR Range Up to 50m (164 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB

Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate

Main Stream: 8MP(3840*2160),Max 20fps;

Sub Stream: 2MP (1920*1080), Max 30fps;

Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
HLC Supported
BLC Supported
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas(8 blacks/4 mosaics+4 blacks)
ROI Up to 8 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
Smart
Behavior Detection Support false alarm filteringLine crossing detection, Intrusion detection, Region entrance detection, Region exit detectionï¼› Motion detectionï¼›
Recognition Audio detection
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U,G.711A
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation ,EZLive, Ezview
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certification
Certifications

CE: EN 60950-1

UL: UL 60950-1

FCC: FCC Part 15
General
Power

12 V DC±25%, PoE (IEEE802.3 af)

Power consumption: Max 4.4W
Dimensions (Ø x H) Φ110.5 x 94.1mm(Φ4.35’’ x 3.7’’)
Weight 0.43kg(0.95lb)
Operating Conditions -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection 2KV
Ingress Protection IP67
