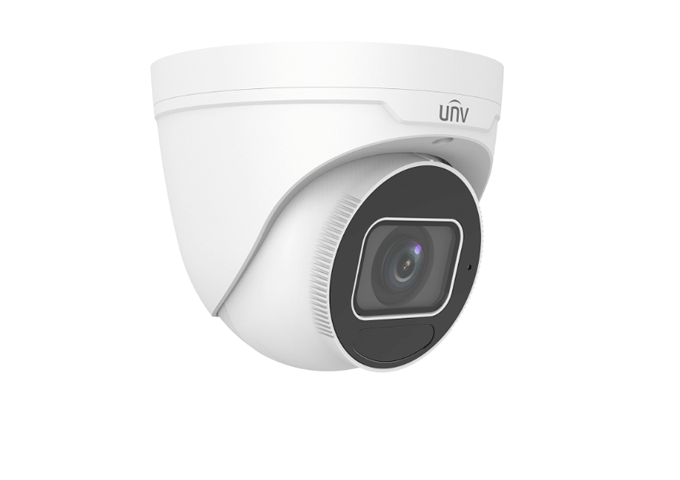

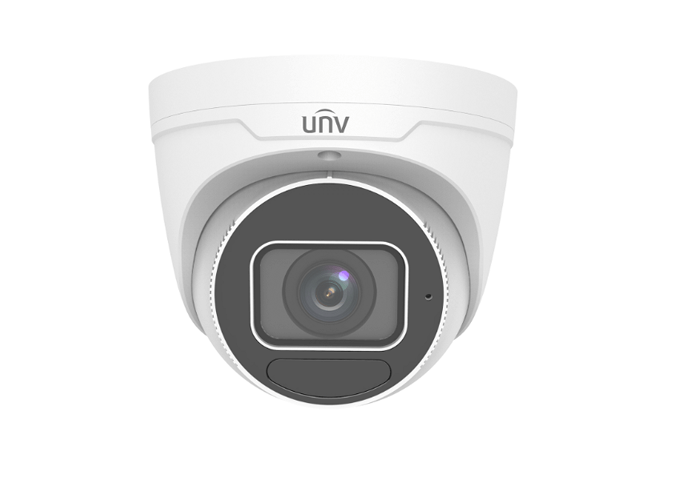

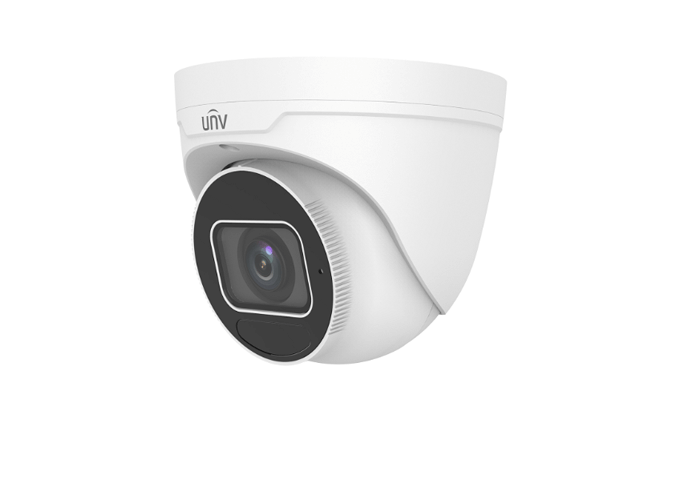

UNV IPC3635SB-ADZK, 5MP IR 2.7-12mm Motorised Eyeball Dome

UNV IPC3635SB-ADZK, 5MP IR 2.7-12mm Motorised Eyeball Dome

Part Number:
UNI580A
Product Brochure
SKU:  UNI580A
Categories:  CCTV Surveillance, IP Cameras, Uniview
Brand:  UNIVIEW
Need help? Contact Us Now!
+61 3 9596 6688 sales@mainline.com.au
Trade pricing available via login.
View full details

UNV IPC3635SB-ADZK, 5MP IR 2.7-12mm Motorised Eyeball Dome

Features:

  • High quality image with 5MP, 1/2.7"CMOS sensor
  • 5MP (2880*1620)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296) @25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Support 9:16 Corridor Mode
  • 120dB true WDR technology enables clear image in strong light scene
  • Built-in Mic
  • Smart IR, up to 40m (131ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection

Specifications (UNV IPC3635SB-ADZK):

IPC3635SB-ADZK-I0
Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens 2.8~12mm，AF automatic focusing and motorized zoom lens
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.7 60.8 24.3 12.2 6.1
13.5 303.8 121.5 60.8 30.4
Angle of view(H) 106.25°~ 30.42°
Angle of View (V) 56.36°~ 17.22°
Angle of View (O) 110.34°~34.18°
Adjustmentangle Pan: 0°~360° Tilt: 0°~75° Rotate:0°~360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.002 Lux (F1.2, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56dB
IR Range Up to 40m (131 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264,MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate

Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps;

Sub Stream:720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Third Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas

White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S, Profile G), API
Client EZStation, EZView ,EZLive
Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet

Certifications
Certifications

CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 7.0 W
Dimensions (Ø x H) Φ129 x 110 mm (Ø5.1â€Â x 4.3â€Â)
Weight 0.70kg (1.52lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Ingress Protection IP67
Reset Button Supported
Vandal Resistant IK10
