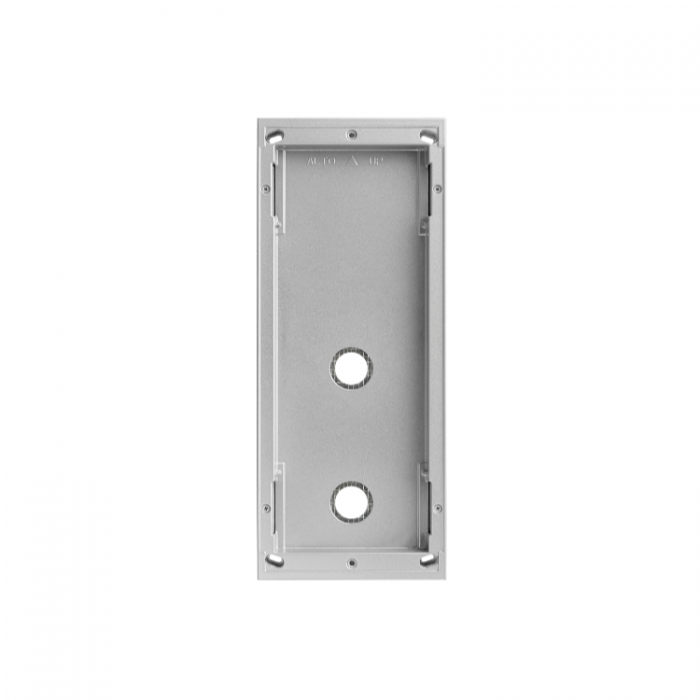

URMET 1168/313 Housing with Wall Frame, 3 Modules, Surface Wall Mount - Alpha
URMET 1168/313 Housing with Wall Frame, 3 Modules, Surface Wall Mount - Alpha
Part Number:
URM406
Need help? Contact Us Now!
Trade pricing available via login.
Need a product not listed online? Contact our team and we’ll source it for you.
View full details
URMET 1168/313 Housing with Wall Frame, 3 Modules, Surface Wall Mount - Alpha

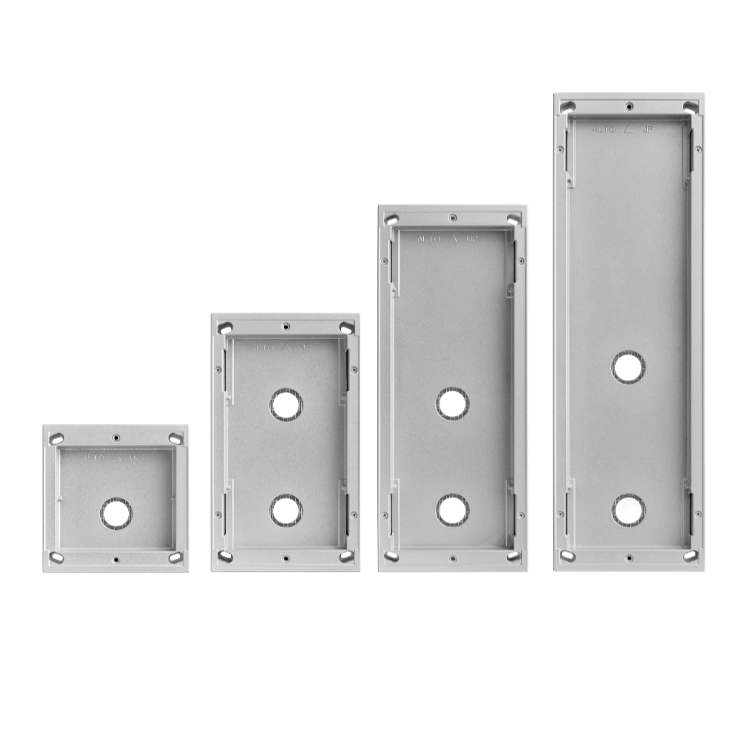

The surface housing boxes are specially designed for Alpha Steel Entry Panels. They are available in 1–4 module sizes and come complete with the wall frame included.
|
Material |
Aluminium with Zamak Heads |
|
Size |
1 Module, 2 Module, 3 Module, 4 Module |
|
Dimensions (1 Module) |
H126mm x W125mm x D20mm |
|
Dimensions (2 Modules) |
H217mm x W125mm x D20mm |
|

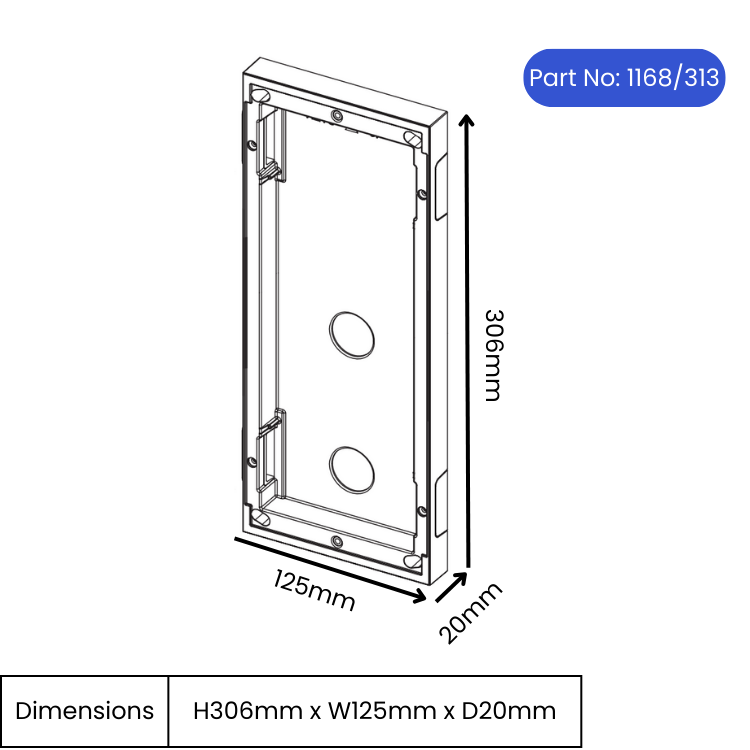

Dimensions (3 Modules) |
H306mm x W125mm x D20mm |
|
Dimensions (4 Modules) |
H396mm x W125mm x D20mm |
