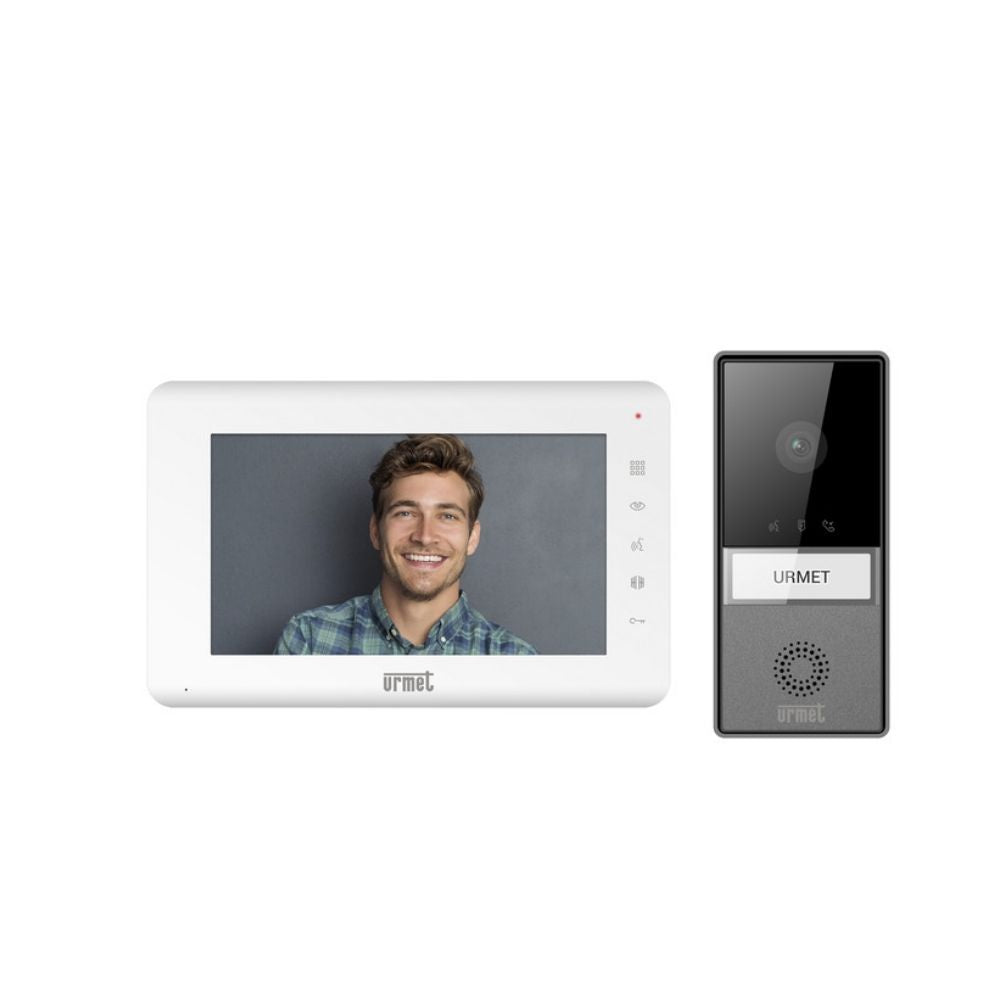

Urmet 1744/501 Single Family Video Intercom Kit

Complete single-family video intercom solution featuring a 7" display with 800 x 480 resolution and Day & Night 2MP colour camera with 100° horizontal viewing angle.

Supports installations up to 100m with two-wire keypad connection and optional parallel bell integration.

Wall-mounted push-button panel (IP54) includes vehicle and pedestrian gate control plus system status indication.

Power supply mounts on 3 DIN modules (100-240Vac input, 15Vdc output).

Four infrared LEDs enable night vision capability.

Compact design with nameplate backlighting for enhanced visibility in low-light conditions.

 Ideal for residential properties requiring reliable video entry verification and access control.

Product specifications:

Video intercom
- Dimensions (W x H x D): 122 x 40 x 21 mm
- Resolution: 800 x 480 pixels
- Display: 7"
- Soft Touch Power supply
- Size: 3 DIN modules
- Input voltage: 100-240Vac
- Output voltage: 15Vdc


Keypad
- Dimensions (W x H x D): 78 x 164 x 43 mm
- IP rating: 54
- Nameplate size (W x H): 54 x 18 mm
- Nameplate backlighting: white colour
- Camera resolution: 2M
- Camera viewing angle: H 100° V 45°
- Colour Day & Night camera
- Number of infrared LEDs: 4
