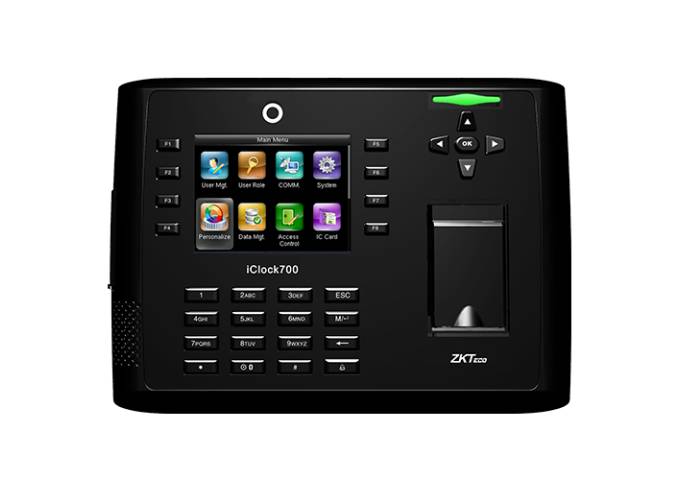

ZKTeco iClock700 3.5-Inch TFT Screen Time Attendance & Access Control Terminal
ZKTeco iClock700 3.5-Inch TFT Screen Time Attendance & Access Control Terminal
Part Number:
ZKA200
Need help? Contact Us Now!
Trade pricing available via login.
View full details
ZKTeco iClock700 3.5-Inch TFT Screen Time Attendance & Access Control Terminal
iClock700 is a 3.5-inch TFT screen Time & Attendance and Access Control Terminal. With the new user-friendly firmware, iClock700 is equipped with features like stunning GUI, more stability, faster matching speed, and better expandability.
iClock700 is compatible with various types of USB flash disks, ADMS, and former SDK. Moreover, RS232/485, TCP/IP, and USB client ensure a smooth date transmission between device and PC. It also has Wi-Fi and 3G connectivity and access control connectivity with Wiegand out and in, electric lock, door sensor, exit button, alarm, and doorbell.
Features:
- iClock700 is a 3.5-inch TFT screen Time & Attendance and Access Control Terminal
- Unit comes with the new user-friendly firmware
- All NEW iClock700 is equipped with features like stunning GUI
- More stability, faster matching speed, and better expandability
- iClock700 is compatible with various types of USB flash disks, ADMS, and former SDK
- In addition, it provides RS232/485, TCP/IP, and USB client ensures a smooth date transmission between device and PC
- It also has GPRS, Wi-Fi, and 3G connectivity and access control connectivity with Wiegand output
- Provides onboard electric lock output, door sensor, exit button, alarm, and door-bell
- Data backup and retrieval
- Multi language
- Intuitive and stunning UI
- Advanced User ID consisting of letters and numbers
Specifications (ZKTeco iClock700, 3.5-Inch TFT Screen Time Attendance & Access Control Terminal):
| Fingerprint Capacity | 8,000 |
| Card Capacity | 10,000 (Optional) |
| Record Capacity | 200,000 |
| Display | 3.5-inch TFT Screen |
| Communication | RS232/485, TCP/IP, USB-host/client |
| Standard Functions | <Workcode, SMS, DST, Webserver, Scheduled-bell, Self-Service Query, Automatic Status Switch,Photo ID, T9 Input, Anti-passback, Camera, Built-in Battery |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Door Bell |
| Wiegand Sigal | Input & Output |
| Optional Functions | ID/Mifare/HID, External Printer, ADMS, Wi-Fi, 3G, Multi Verification Mode |
| Software | ZKTime.Net 3.0/BioTime 8.0 |
| Power Supply | DC 12V 3A |
| Verification Speed | ≤1 Sec. |
| Operating Temp. | 0°C - 45°C |
| Operating Humidity | 20% - 80% |
| Dimension | 225.2×166.0×46.3mm (Length×Width×Thickness) |
| Gross Weight | 1.94 kg |
