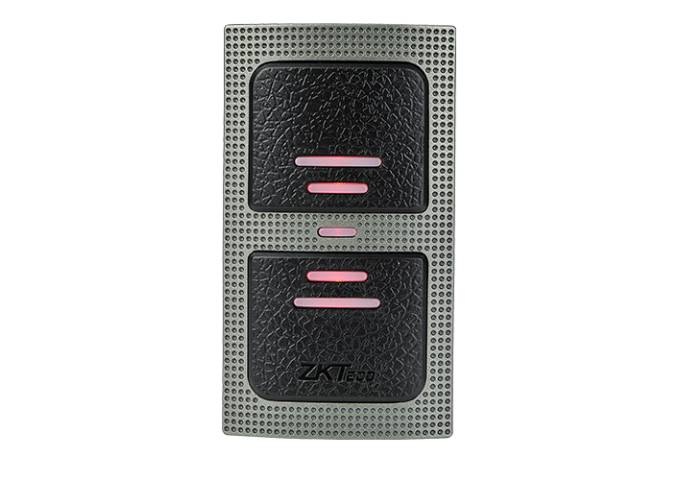

ZKTeco KR500E Mullion Mt Prox. Reader EM Format 44x78x16mm

The KR Series is the main accessories line of external Wiegand readers for all ZKAccess access control devices. With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up to 10 cm in the E series case and up to 5 cm in the M series case. The fact that this series is waterproof, and the operating temperatures can range from -20 degree to +65 degree, it is the ideal solution for outdoor installation. Also they can be connected with our C3 controllers.

Features:

• Read 125 kHz Proximity ID card number
• Read Range: Up to 10 cm
• Wiegand output: 26-bit
• Easy to install on metal door frame or mullion
• External LED control
• External buzzer control
• Indoor/outdoor operation
• Solid epoxy injection
• Reverse polarity protection
• Elegant and robust design
• Read range of up to 10cm for proximity card and 5cm for Mifare card
• Waterproof IP64 or IP65

Specifications (ZKTeco KR500E):
