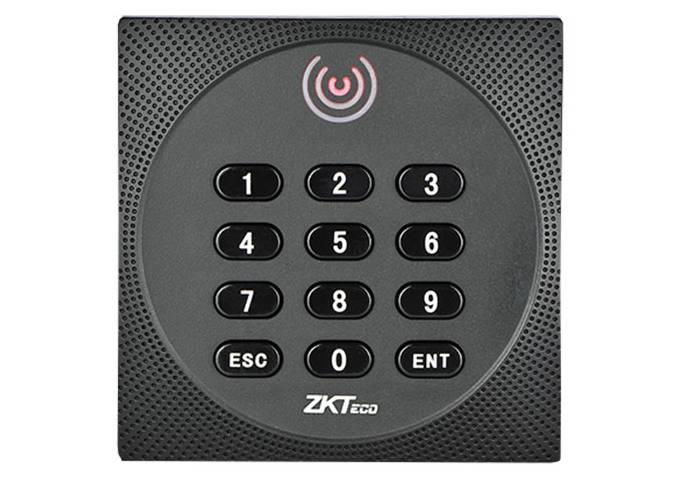

ZKTeco KR602E Proximity ID Card No. Or Pin RFID Card Reader
With an elegant and robust design, they are easy to connect and install and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up to 10cm in the E series case and up to 5cm in the M series case. The fact that this series is waterproof, and the operating temperatures can range from -20º to +65º, it is the ideal solution for outdoor installation. Also, they can be connected with our C3 controllers.
Features:
- Easy to install
- 125KHz Proximity/13.56MHz Mifare Card Reader
- Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
- 26/34bit Wiegand (default)
- Easy to install on Metal Door Frame or Mullion
- External LED Control
- External Buzzer Control
- Indoor / Outdoor Operation
- Solid Epoxy Injection
- Waterproof IP64
- Keypad
- Reverse Polarity Protection
- Elegant and robust design
Specifications (ZKTeco KR602E Proximity ID Card No. Or Pin RFID Card Reader):
| Read Range | KR602E Up to 10 CM / KR602M Up to 5 CM |
| Reading Time ( Card ) | s 300 ms |
| Power | DC 6-14V / Max.70mA |
| Input Port | 2ea (External LED Control, External Buzzer Control) |
| Output Card Format | 26bit Wiegand (E) 34bit Wiegand (M) |
| LED indicator | 2 Color LED Indicators (Red and Green) |
| Beeper | Yes |
| Operating temperature | -20° to +65°C |
| Operating Humidity | 10% to 90% (relative humidity non-considered) |
| Color | Black and grey |
| Material | ABS+PC with texture |
| Dimension: (WxHxD) cm | 8.6x8.6x2 |
| Weight | 150g |
| Index of Protection | IP64 |
