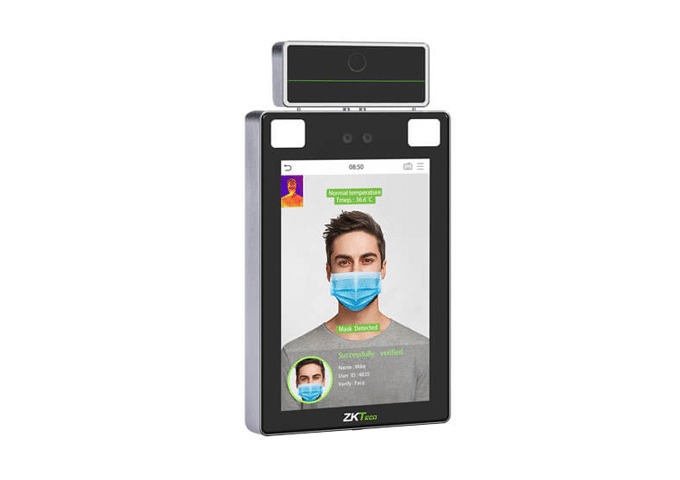

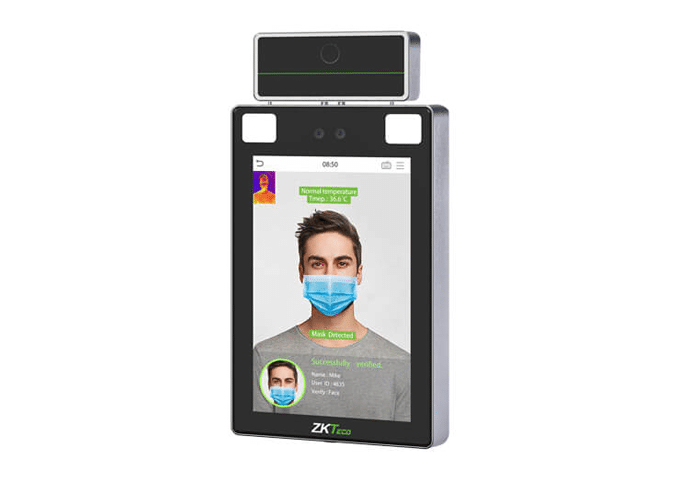

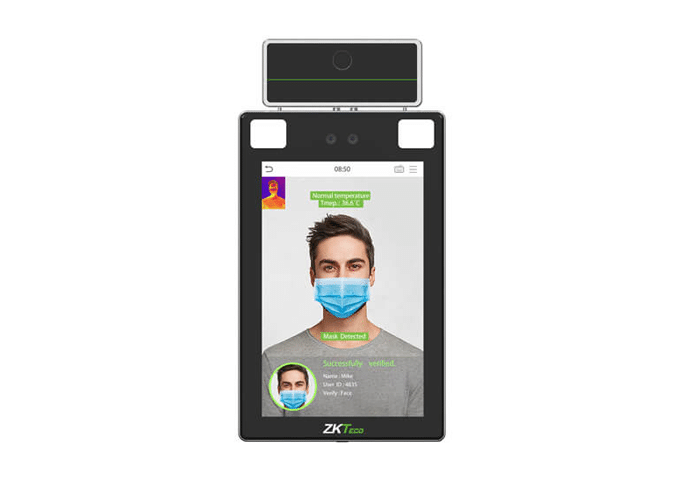

ZKTeco ProFace X(TI) With WIFI Wall-Mount Installation Version

ProFace X [TI] is a fully upgraded version of the ProFace product line, which is designed to deal with all kinds of scenarios. Powered by the ZKTeco-customized CPU for running the intellectualized engineering facial recognition algorithm and the latestcomputer vision technology, ProFace X [TI] supports both facial and palm verification with large capacity and rapid recognition speed, boosting the security performance in all aspects.

ProFace X [TI] also helps eliminate hygiene concerns; not only because of the contactless recognition technology it is equipped with, but also because of the new functions namely body temperature detection and masked individual identification.

Features:

• Ultra-large capacity of facial templates for 1:N verification: 30,000 (standard); max. 50,000 (optional)
• Huge capacity of palm templates; 1:N - 5,000 palm templates
• Anti-spoofing algorithm against print attack (laser, colour and B/W photos), videos

Parameter (ZKTeco ProFace X(TI):

Capacity
Faces	30,000 (1:N) / 50,000 (Optional)
Palm	5,000 (1:N)
Users	50,000
Transactions	1,000,000 / 2,000,000(Optional)
User Photos	10,000
Event Photos	10,000
Compatibility	Security Relay Box / Wiegand / RS485 / RS232 Slave Reader with FP / Barcode / QR-code / ZKBioSecurity and ZKBioAccess Software
Hardware	900MHz Dual Core Customized Computer Vision CPU
	512MB RAM / 8G Flash
	8" High light (400lux) IPS Touch LCD
	2MP WDR Low Light Camera
	Adjustable Light brightness LED / Hi-Fi Voice / High Sensitivity Microphone / Distance Detection Sensor / Reset Button and Tamper Switch
Access Control Interface	Lock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor
Special Functions	0.3s Hight Speed Facial Verification
	Liveness Detection / HTTPS Communication Encryption (Optional)
	Event Snapshot
Standard Functions:	Access Levels, Groups, Holidays, DST,Duress Mode (Password), Anti-Passback,Record Query, Tamper Switch Alarm,Custom Wallpaper & Screen Saver
Preventative Measures	Mask detection / Body temperature detection
	Temperature Measurement Distance:30cm~120cm (0.98ft~3.94ft)
	Temperature Measurement Accuracy:±0.3°C
	Temperature Measurement Range: 20°C~50°C(68°F ~ 122°F)
Communication	TCP/IP / Wiegand Input / Output / Wi-Fi (Optional) / RS485 / RS232
Additional Info
Face Algorithm:	ZKLiveFace5.8
Palm:	FAR ≤0.01%; FRR ≤1%
Working Temperature:	16°C ~ 35°C,(60.8°F ~ 95°F)
Working Humidity:	≤93%
Storage Temperature:	-40°C ~ 65°C (-40°F ~ 149°F)
Net Weight:	853g
Dimensions (H*L*D):	279*143*27mm
Power
Operating Voltage:	12V DC
Current Draw:	< 2,000mA
