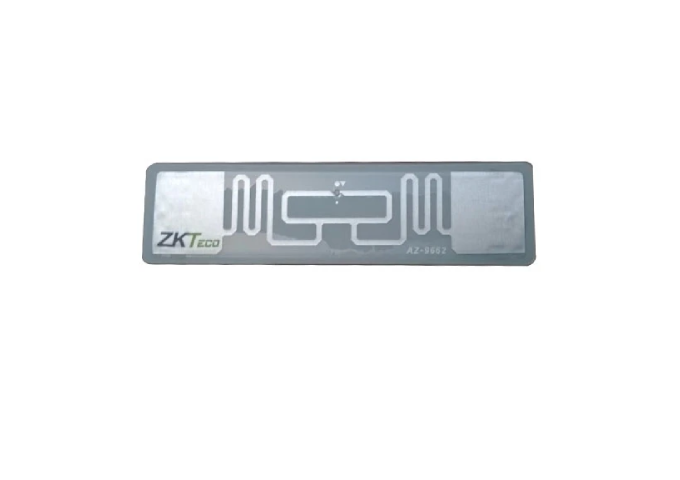

ZKTeco UHF Parking Tag
ZKTeco UHF Parking Tag
ZKTecoUHF Parking Tag uses AZ 9654 H3 chip, and each tag has a global, unique 64 bits TID code. It provides an EPC memory of 96 bits and a user storage space of 512 bits. It will be convenient for the customers to customize the label information, and it cannot be relocated easily. The operating frequency is between 860MHz to 960MHz, and it works with the ISO 18000-6C protocol. It can be used for double-side printing, write code, encryption according to customer requirements.
Adopts ultra-high frequency encrypted chip, specially designed for ZK UHF reader. This tag is an ultra-thin electronic tag, easy to stick to the surface of objects, and has a long reading distance, a good choice to be applied in personnel management.
Features:
- High Safety
- High Reading Rate
- High Chip Sensitivity
- Flexible Storage Structure
Product Features:
Specifications (ZKTeco UHF Parking Tag):
- Size: 100x44mm
- Temperature: -30 - +85°C
Applications:Long-distance fixed vehicle access management (Reading distance for 0-6m for UHF 10 and U2000 series)
| Model | New UHF Parking Tag | |
| Reading Distance | 10m (using a UHF 6Pro Reader) | 10m (using a UHF 6Pro Reader) |
| Frequency | 860MHz to 960MHz | |
| Chip | AZ 9654 H3 | |
| Interface Protocol | ISO18000-6C | |
| Storage Structure | EPC: 96 bits
TID: 64 bits USER: 512 bits |
|
| Erasing Capability | 100,000 times (only for the chip) | |
| Working Temperature | -30°C to 85°C | |
| Storage Temperature | -30°C to 85°C | |
| Dimensions | 100*40mm (±0.03mm) | |
