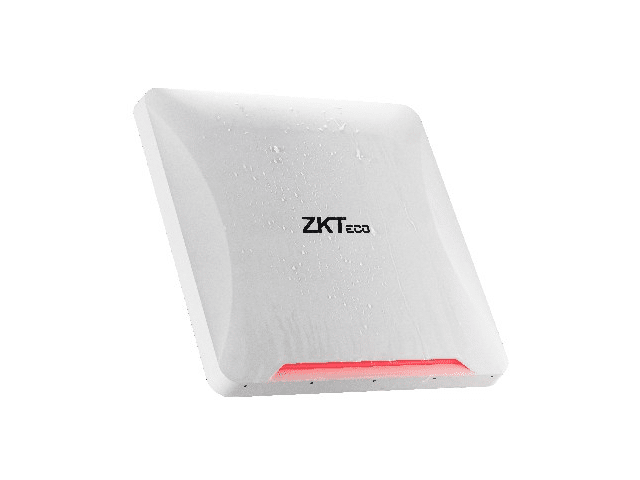

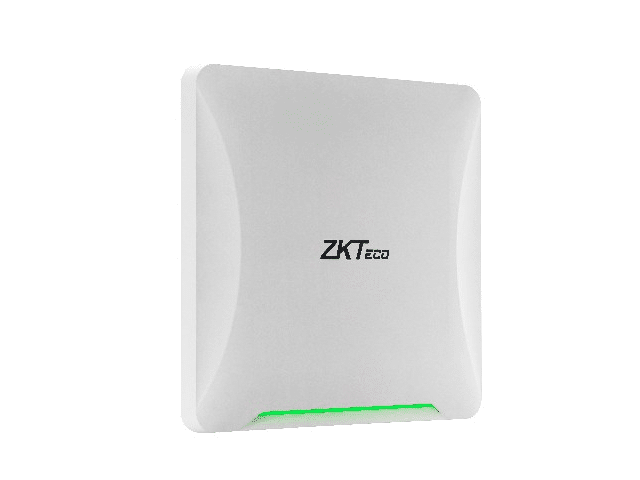

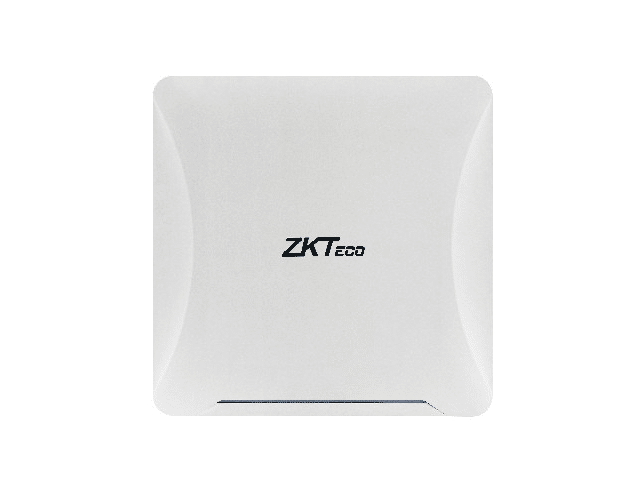

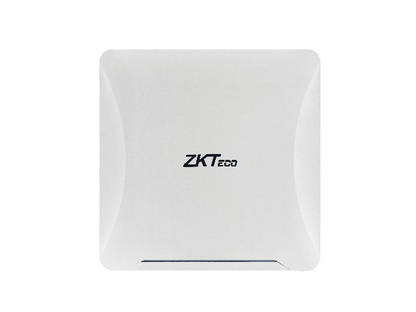

ZKTeco UHF10E Pro, UHF Reader

ZKTeco UHF10E Pro, UHF Reader

UHF5 Pro and UHF10 Pro are ZKTeco's third-generation UHF readers, with much stable performance, longer reading distance, and faster recognition speed. The UHF reader is equipped with the passive UHF card function, which could be widely used in Vehicle Management and Personnel Management applications. The product also meets the CE, FCC technology requirements.


Features (ZKTeco UHF10E):

• Support two working modes: Trigger to Read & Always Read (Default)
• Support different wiegand data output (Wiegand 26 by default)
• LED at the bottom of readers indicating the reading status (7-color indicators: red, green, blue, yellow, cyan, purple, white)
• Multiple communication modes, supporting Wiegand and RS485· Protection level of IP66

Specifications (ZKTeco UHF10E):

• Dimensions: 308.5 *308.5 * 67.5

• Weight: 1.8kg

• Power: 1.2 - 4.2W

• Frequency: E: 865MHz - 868MHz, F: 902MHz - 906MHz (adjustable)

• Communication Interface: Wiegand, RS485, USB configuration parameters (Wiegand, RS485 requires one of two options)

• Interface Protocol: EPC global UHF Class 1 Gen 2 / ISO 18000-6C

• Working Mode: Read Always (Default) and Read by Trigger

• Output Power: 19dBm - 30dBm

• Protection Level: IP66

• Working Voltage: DC 9 - 15V

• Storage Temperature and Humidity: -20°C - 80°C, < 85%

• RS485 Communication: Optional baud rate (9600, 19200, 38400, 57600, 115200), the default is 115200
