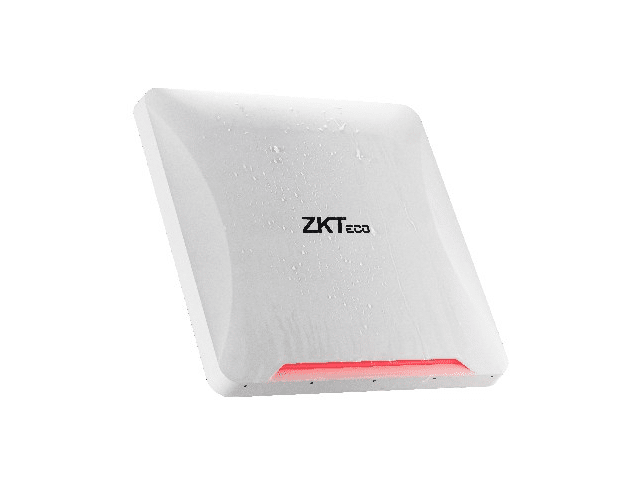

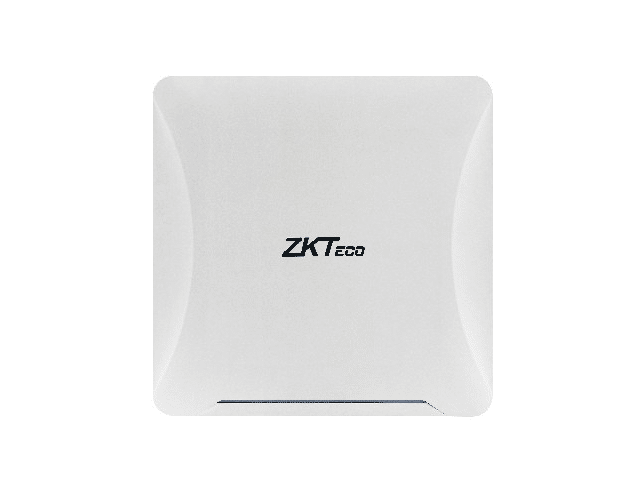

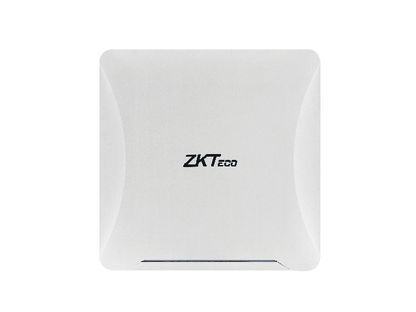

ZKTeco UHF5E Pro, UHF Reader
ZKTeco UHF5E Pro, UHF Reader
UHF5 Pro & UHF10
Features:
- Support two working modes: Trigger to Read & Always Read (Default)
- Support different Wiegand data output (Wiegand 26 by default)

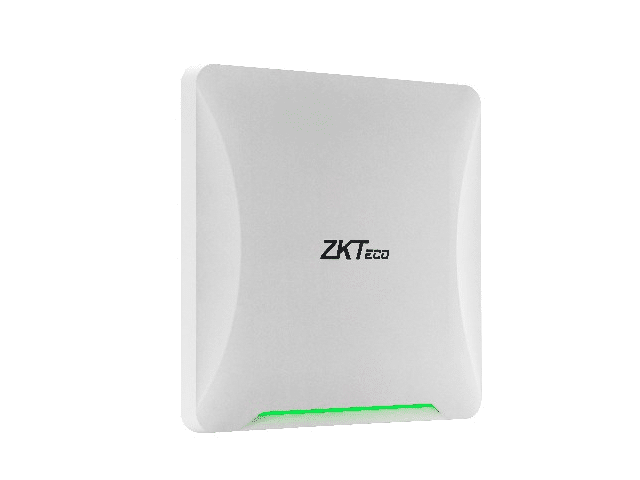

- LED at the bottom of readers indicating the reading status (7-color indicators: red, green, blue, yellow, cyan, purple, white)
- Multiple communication modes, supporting Wiegand and RS485
- Protection level of IP66
Specifications (ZKTeco UHF5E Pro, UHF Reader):
|
Model |
UHF5E Pro & UHF5F Pro |
UHF10E Pro & UHF10F Pro |
|
Reading Distance |
2 to 8 meters (Hand held test) (Actual scenario test is around 4m) |
10 to 20 meters (Hand-held test) (Actual scenario test is around 8m) |
|
Antenna Gain |
9 dBi |
12 dBi |
|
Dimensions (mm) |
308.5 * 308.5 * 67.5 |
445 * 445 * 67.5 |
|
Weight |
1.8kg |
3kg |
|
Power |
1.24.2W |
1.24.5W |
|
Frequency |
E: 865MHz - 868MHz F: 902MHz - 906MHz (adjustable) |
|
|
Communication Interface |
Wiegand; RS485; USB configuration parameters (Wiegand, RS485 requires one of two options) |
|
|
Interface Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
|
|
Working Mode |
Read Always (Default) and Read by Trigger |
|
|
Output Power |
19dBm - 30dBm |
|
|
Protection Level |
IP66 |
|
|
Working Voltage |
DC 9-15V |
|
|
Working Temperature and Humidity |
-20°C - 65°C; <85% |
|
|
Storage Temperature and Humidity |
-20°C - 80°C; <85% |
|
|
RS485 Communication |
Optional baud rate (9600, 19200, 38400, 57600, 115200); the default is 115200 |
|
| Model | UHF5E Pro & UHF5F Pro | UHF10E Pro & UHF10F Pro |
| Reading Distance | 2 to 8 meters (Hand held test) (Actual scenario test is around 4m) | 10 to 20 meters (Hand-held test) (Actual scenario test is around 8m) |
| Antenna Gain | 9dBi | 12dBi |
| Dimensions (mm) | 308.5 *‚308.5 * 67.5 | 445 * 445 * 67.5 |
| Weight | 1.8kg | 3kg |
| Power | 1.2 - 4.2W | 1.2 - 4.5W |
| Frequency | E: 865MHz - 868MHz | |
| ‚ | F: 902MHz - 906MHz (adjustable) | |
| Communication Interface | Wiegand; RS485; USB configuration parameters (Wiegand, RS485 requires one of two options) | |
| Interface Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C | |
| Working Mode | Read Always (Default) and Read by Trigger | |
| Output Power | 19dBm - 30dBm | |
| Protection Level | IP66 | |
| Working Voltage | DC 9-15V | |
| Working Temperature and Humidity | -20°C - 65°C; <85% | |
| Storage Temperature and Humidity | -20°C - 80°C; <85% | |
| RS485 Communication | Optional baud rate (9600, 19200, 38400, 57600, 115200); the default is 115200 | |
- Support two working modes: Trigger to Read & Always Read (Default)
- Support different wiegand data output (Wiegand 26 by default)
- LED at the bottom of readers indicating the reading status(7-color indicators: red, green, blue, yellow, cyan, purple, white)
- Multiple communication modes, supporting Wiegand and RS485
- Protection level of IP66
